Product Info
The Ag5100 is a PoE+ module that can deliver up to 30 Watts of output power. This is ideal for applications such as IP Telephones, WiMAX access points, PTZ cameras and remote computer terminals. The input Signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at. As an older design, Silvertel would not generally recommend it for new designs, unless 24V output voltage is required. Newer recommended alternatives would be either Ag5200 DIL or Ag5300 SIL.
| · POE+ module compliant with IEEE802.3af & at |
| · 85% efficient DC/DC converter |
| · 1500V isolation (input to output) |
| · Up to 30 Watt Output Power |
| · Overload,thermal and short circuit protection |
| · Simple integration |
Features
-
- POE + module compliant with IEEE802.3af & at
- Up to 30 Watt Output Power
- 85% efficient DC/DC converter
- Adjustable output voltage (12V or 24V nominal output)
- 1500V isolation (input to output)
- Input voltage range 37V to 57V
- Minimal low cost external components required
- Overload,thermal and short circuit protection
- Simple integration

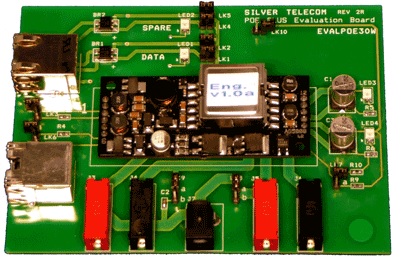

Ag5100 Evaluation Board
This is Silvertels standard 30W IEEE802.3at module evaluation board, for testing and evaluation of Silvertel POE+ PD modules. It is designed to work with Power Sourcing Equipment (PSE) that supplies power over either the spare pair or the data pair. It is suitable for use with the following products – Ag5100. Please note that this was the Evaluation board for Ag5000, but this part is now obsolete. Please use the links provided to order boards or download the User Manual.
