Product Info

The Ag5600 is a PoH compliant POE module that can deliver up to 88 Watts of output power. This is ideal for applications such as HDBaseT LCD TVs, Digital displays, WiMAX access points, door access systems, PTZ cameras and remote computer terminals. The input signature fully complies with the PoH specification, which is backward compatible to IEEE802.3af and IEEE802.3at and is designed to meet the safety isolation requirements of IEEE802.3at.

·  PoH Compliant 88W PD Module
·  PoH Signature
·  Overload and short-circuit protection
·  Small size PoE PD half brick
·  Backwards compatible with IEEE802.3af and 802.3at
·  Simple integration


    • PoH Compliant 88W PD Module
    • Small size PD half brick.
    • High Efficiency
    • PoH Signature
    • Backwards compatible with IEEE802.3af and 802.3at
    • Overload and short-circuit protection
    • 1500V isolation (input to output)
    • Minimal external components
    • Simple integration

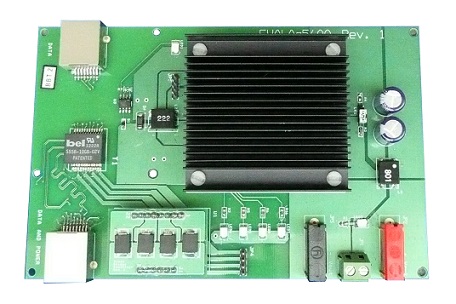

Ag9800 Evaluation Board

The EvalAg5600 is intended for testing and evaluation of the performance of the Ag5600 Power over HDBaseT (PoH) high power POE PD module. This evaluation board will work with suitable 100W PoE/PoH Power Sourcing Equipment (PSE) (e.g. Ag6600) that supplies the power over the spare pair and or the data pair. It is fully compatible with Ag6600 for high power POE/POH applications. Please use the links provided to buy boards or download the user  manual.
