Product Info
The Ag6600 is a single channel high power PSE module designed to be compliant with Power over HDBaseT (PoH), IEEE802.3at Type 1(af) and IEEE802.3at Type 2 Power over Ethernet (PoE) applications. It is capable of delivering up to 95W and is aimed at higher power applications. It is complemented by the Ag5600 PD module for POH and HDBaseT applications.
| · PoH Compliant 100W PSE Module |
| · PoH Standard signature recognition |
| · Overload and short-circuit protection |
| · Small size – 35mm x 51mm |
| · Backwards compatible to IEEE802.3af and 802.3at devices |
| · Simple integration |
Features
- PoH Compliant 100W PSE Module
- Small size – 35mm x 51mm
- High Efficiency
- PoH Standard signature Recognition
- Backwards compatible to IEEE802.3af and 802.3at devices
- Overload and short-circuit protection
- Minimal external components
- Simple integration

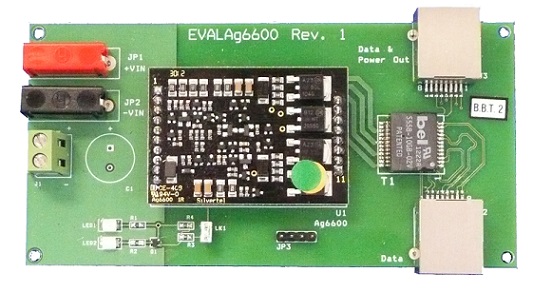

Ag6600 Evaluation Board
The Ag6600 is a single channel high power PSE module designed to be compliant with Power over HDBaseT (PoH), IEEE802.3at Type 1(af) and IEEE802.3at Type 2 Power over Ethernet (PoE) applications. It is capable of delivering up to 95W and is aimed at higher power applications. It is complemented by the Ag5600 PD module for POH and HDBaseT applications.
